12 Tooth Sprocket

12 Tooth Sprocket

by Coleman Pop Up Parts
$0
$22.95 - $32.95
$22.95
$22.95 - $32.95
$22.95
Option: Used
Thanks for signing up for restock notifications!
There was an error signing up for restock notifications. Please try again.

Sign up for restock notifications

Notify Me

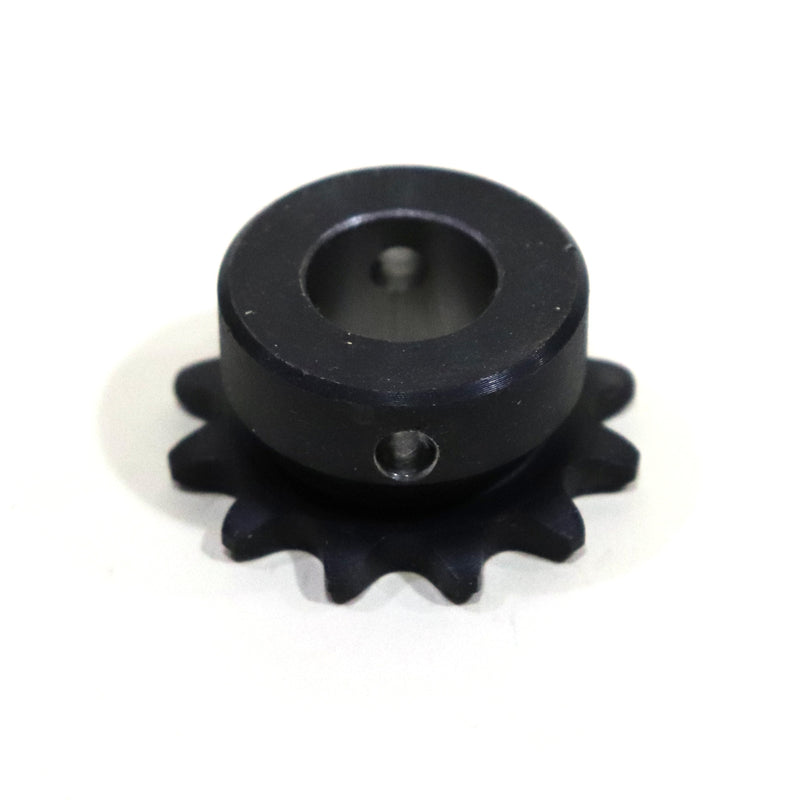

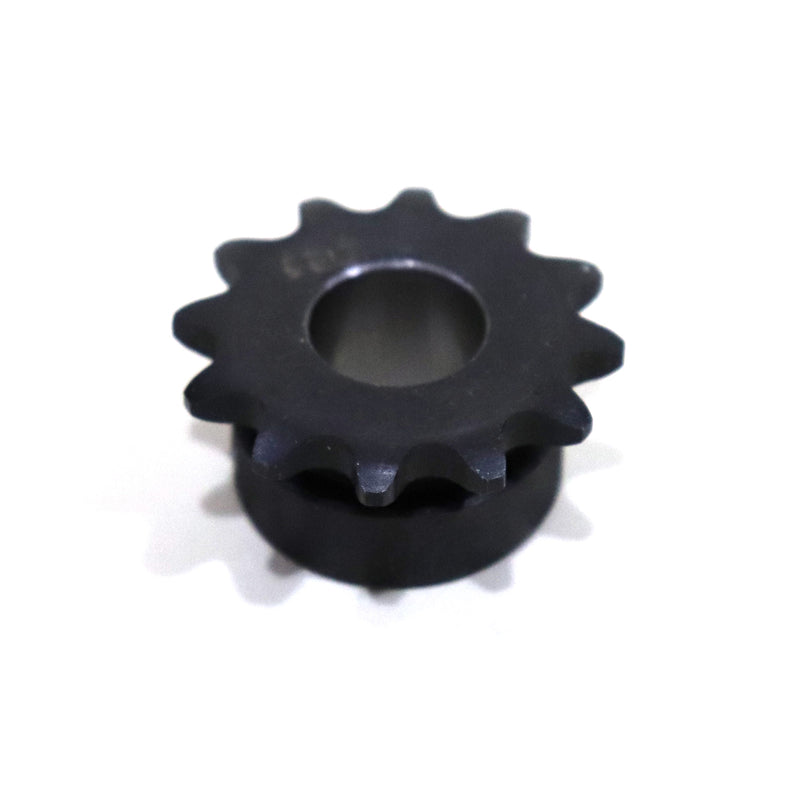

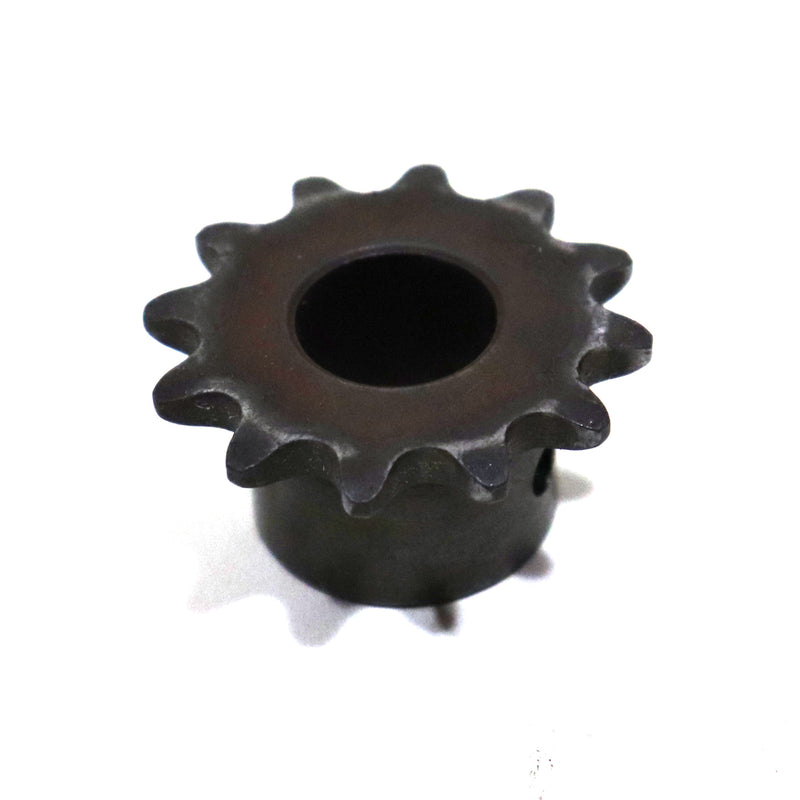

Used on coleman and Fleetwood pop up with an upper or left hand crank assemblies. The chain runs from the crank assembly to this gear. This gear then drives the whiffle tree.

It is always located in the bottom of the unit, and commonly attached to the whiffle tree drive.

Measures 3/4 inches tall, 1-3/4 inches across tooth to tooth, and has 12 teeth total. 5/8 inside diameter.

Part number 4730B3848
