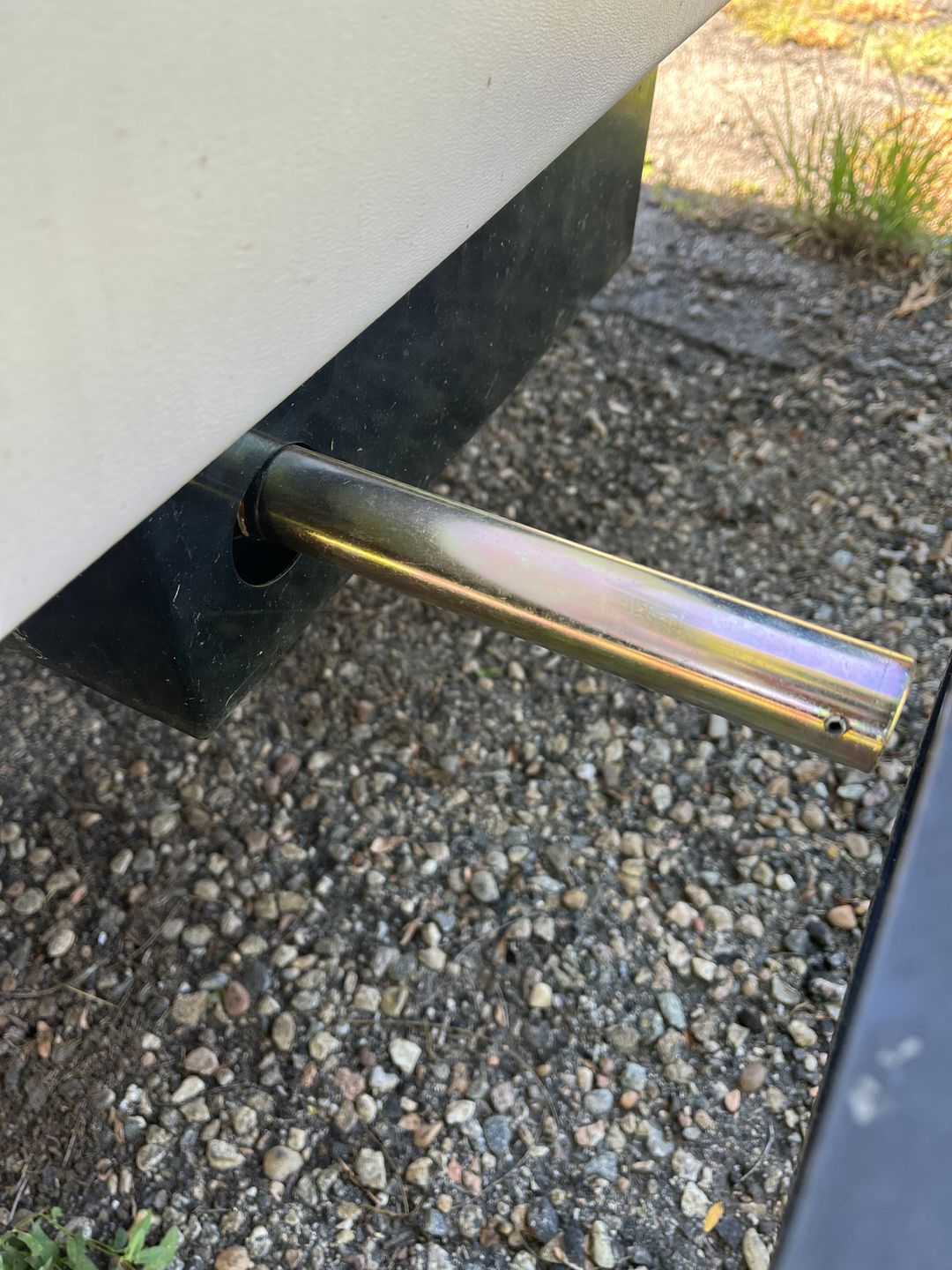

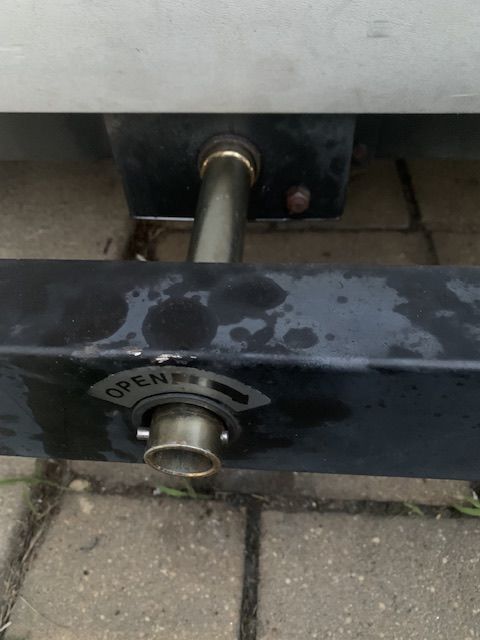

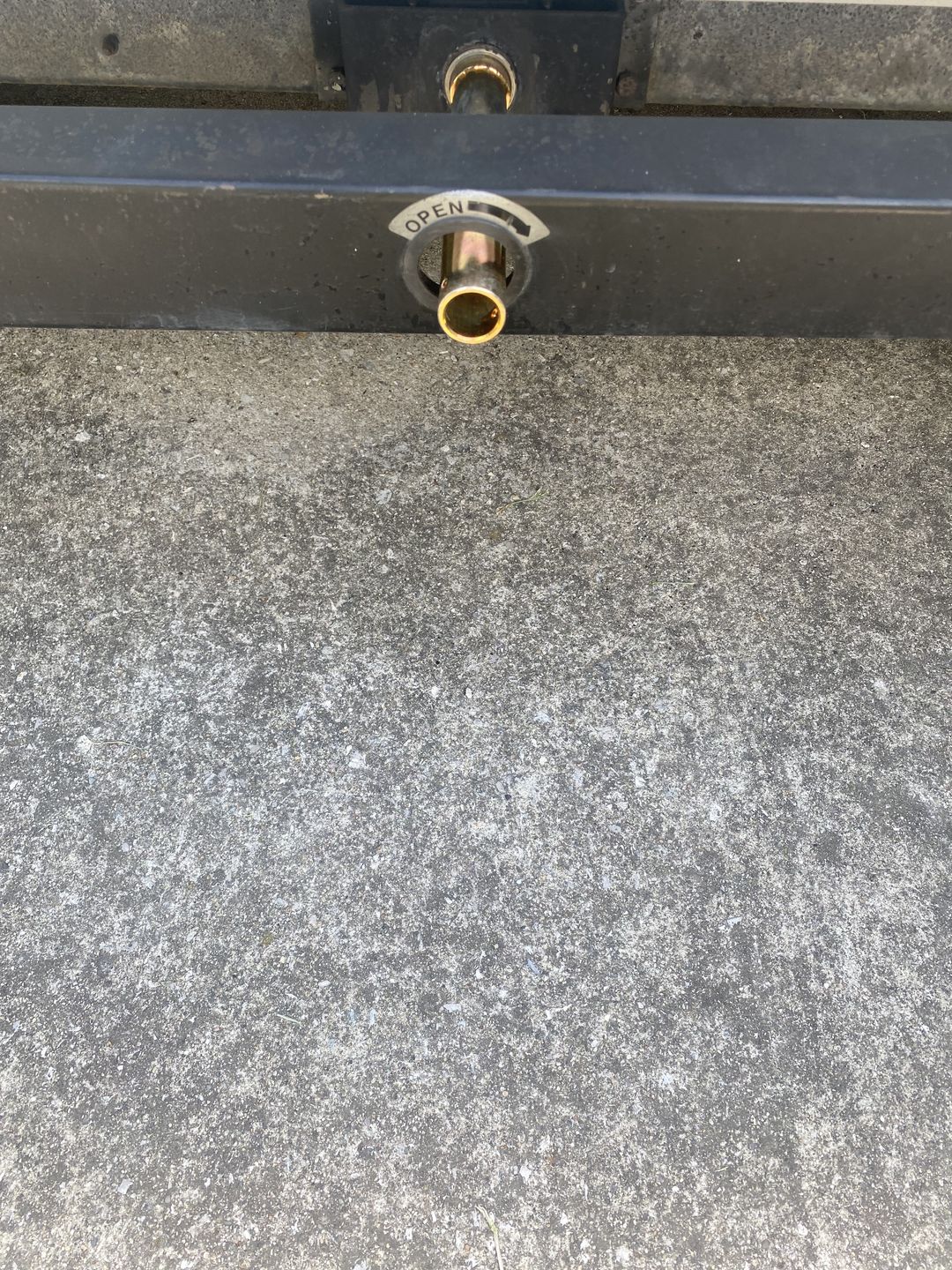

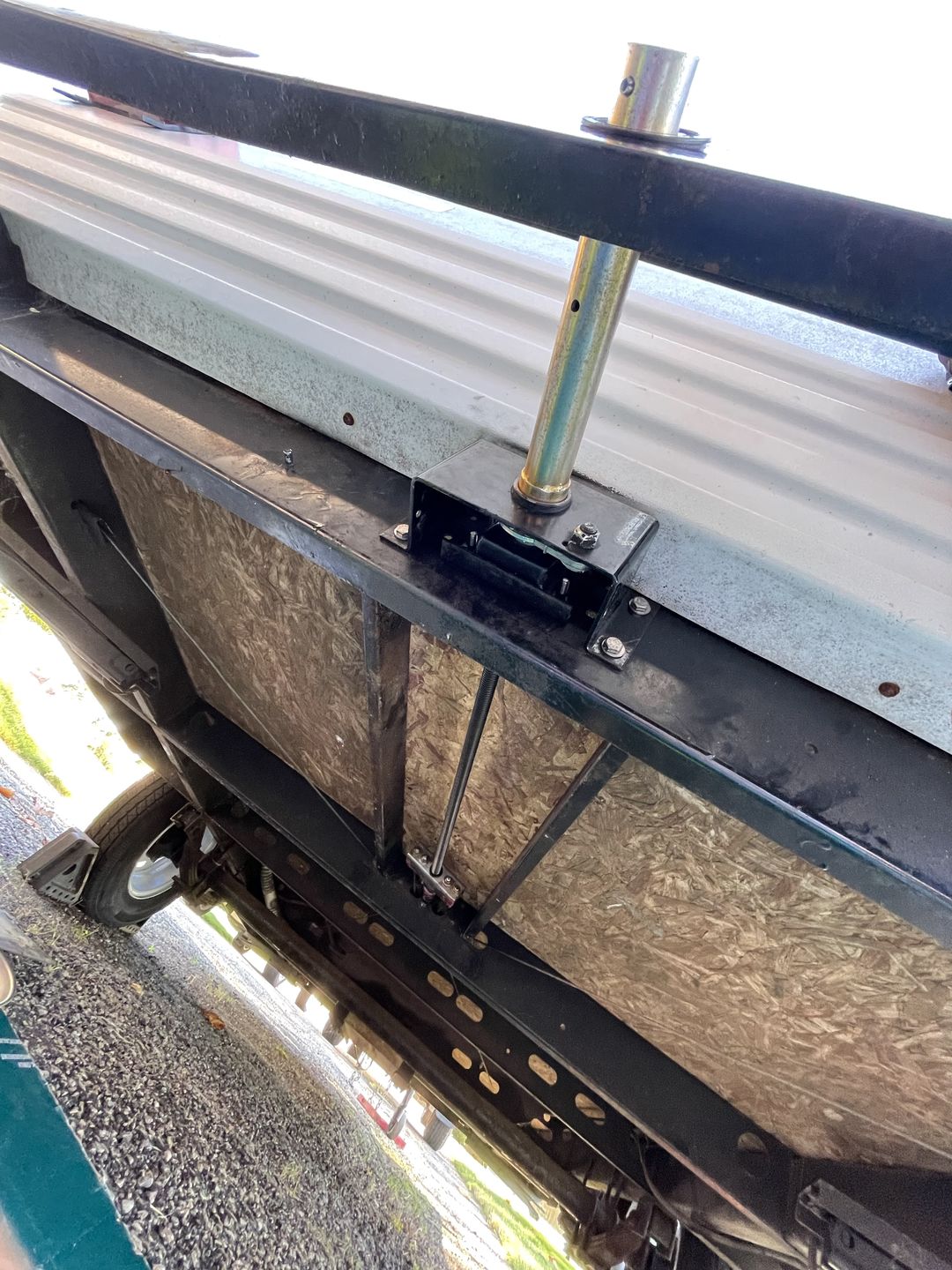

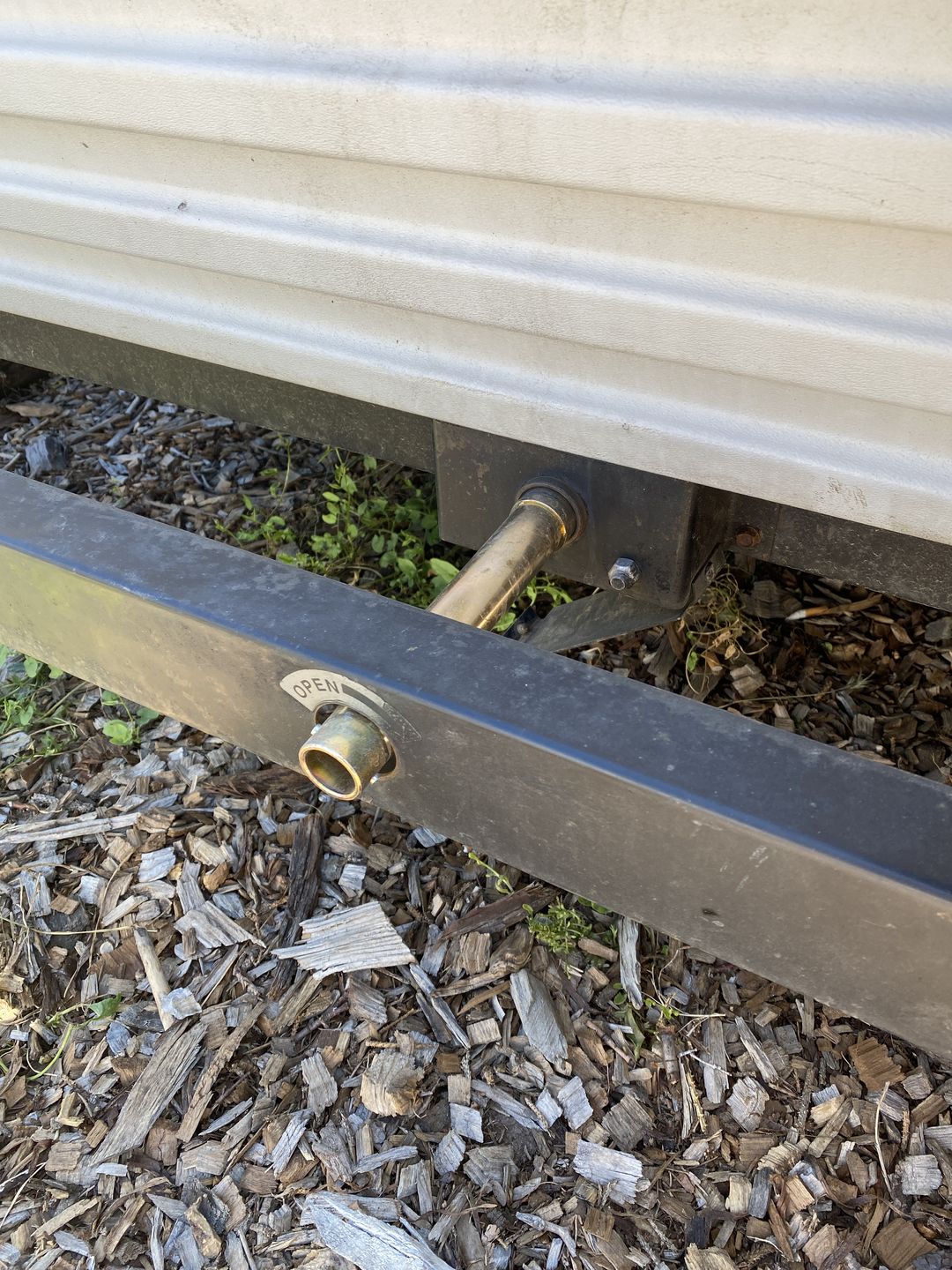

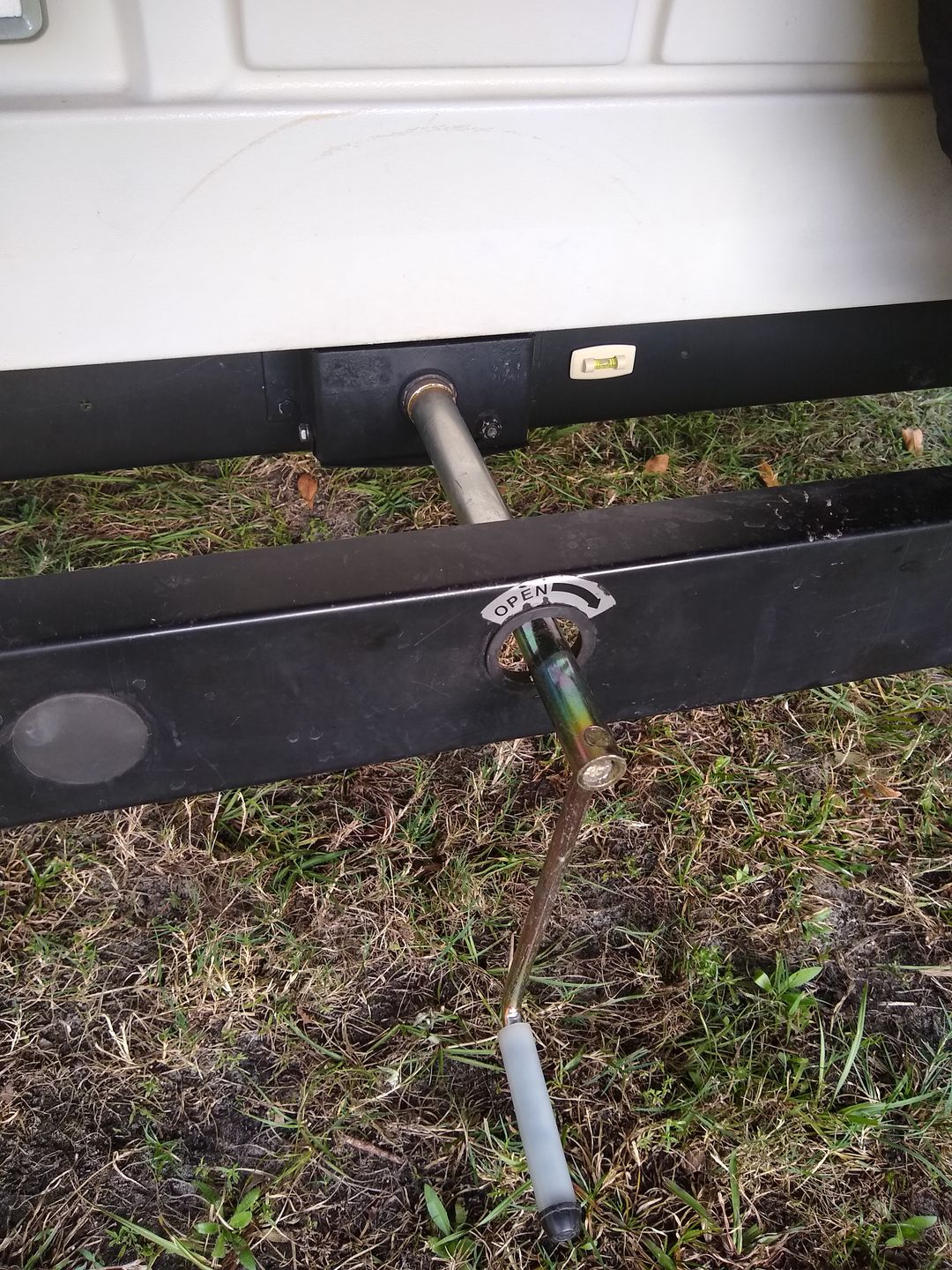

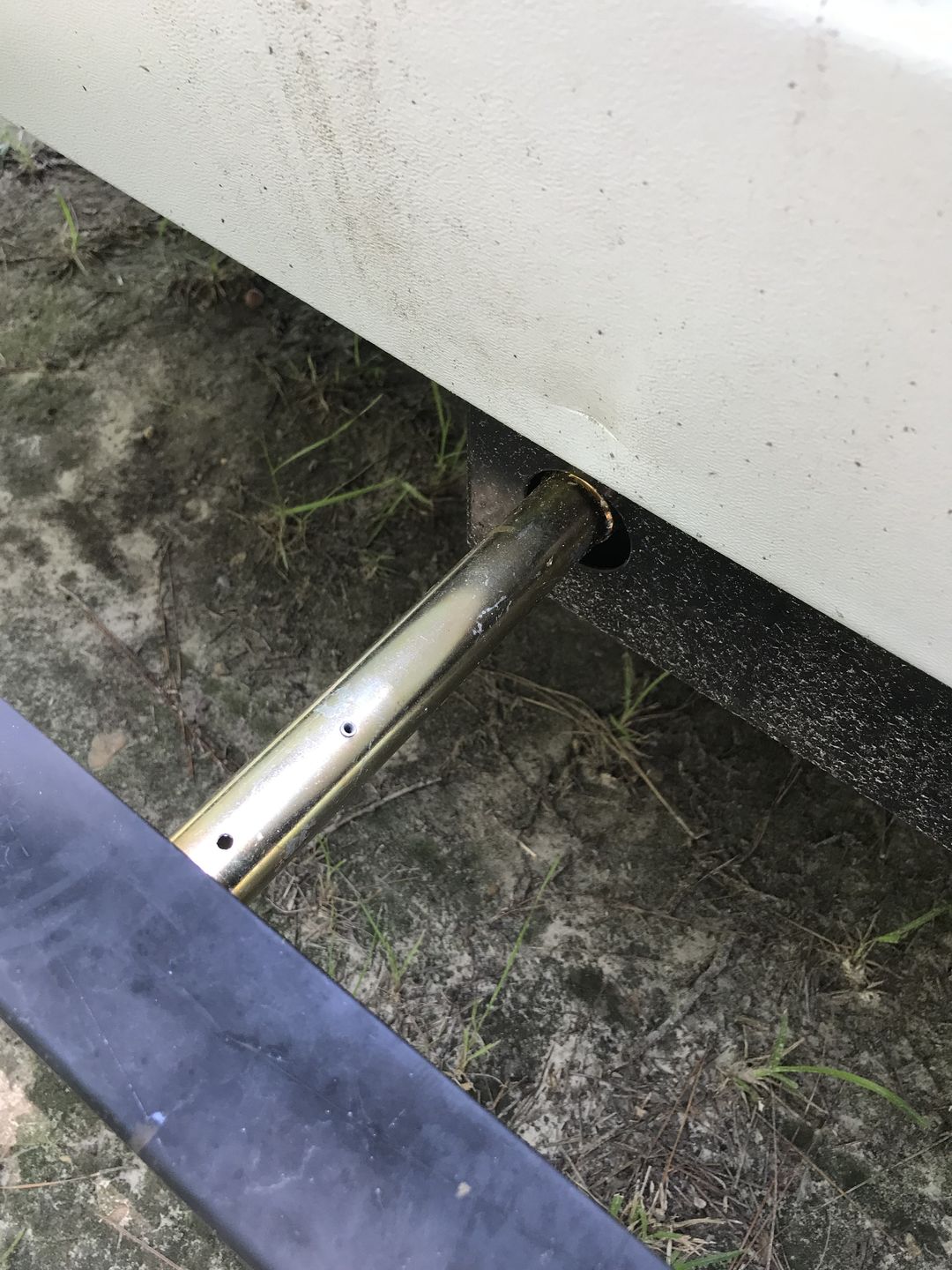

The drive hub extension threads onto the drive shaft. This crank component is what you see sticking out of the camper, and what you put the crank handle into to raise and lower the roof.
Installation Tip: This kit comes with a fine thread and coarse thread 5/8 nut. Check your correct thread size before installation and use a thread locking agent like LOCK-TITE when installing the 5/8 nut.
Part number 4751C5681
Customer Reviews
Overall rating: 4.6 / 5 from 27 reviews.
Snapped the rear crank on my 95 Coleman pop-up one week before I was going on vacation
Found the replacement part on your website received the part in 24 hrs
Called customer service for help with the installation
They explained exactly how to remove the old part and install a new one. Also watched a great how to video produced by the website. Over all it was a great experience
Our pop-up camper would no longer go up as the drive hub would just spin and spin without gripping any of the gears. We were able to buy the fine thread drive shaft and drive hub extension 5681 to easily solve the issue. The videos and parts/owners manuals provided on the Coleman Popup Parts website were extremely helpful in making sure we ordered the correct parts. We are in the process of updating /repairing parts of our camper and will be buying everything off this website. It has taken them a long time to create so many great videos but it has been so helpful as we learn our way around the camper for repairs and maintenance. Thank you!
Hello, The part came fast… I had to drill a new pinhole, and getting the pin in the new pinhole was a little challenging. Overall, easy install. The instructional video was very informative.
Derek helped tremendously with identifying what part I needed and how to replace it. Got the part quickly and the repair worked. My roof wasn’t coming down, but replacing the extension tube fixed it. That was a few months ago, but now the roof won’t raise, so now I’m back and trying to figure out if I need to get the drive shaft part replaced. The threads appear to be worn out.
Couldn’t have done it without you. New whiffletree, coupler, drive tube and interestingly enough there wasn’t a bearing cup in there so I put one of those in too. All new stainless fasteners and we are ready to camp!
Derek's knowledge was crucial as we diagnosed our problem, and figured what parts we needed. Couldn't have done it without him! So, thanks very much, Coleman Pop-Up Camper Parts!! We couldn't be more pleased.
This drive hub extension kit was a perfect fit for our Coleman Fleetwood Mesa popup lower crank assembly. I called the Popup parts service department with a question about the installation, and got the advice I needed. Their YouTube videos are really excellent for a do-it yourself guy like me. I previously ordered these parts from an Ebay seller, but received the wrong parts and returned them. Our lift system works like new!
Had to buy a longer one than the old one, but I cut it to size. I should have watch the video of "How drive hub extension tubes work on pop up campers" before I started to work on the lift system. It would have saved me time and money. I was missing the inner parts of the extension tube. Now my crank system works perfectly.
Part is exactly what I ordered, but as previously explained, these tubes come with pre-drilled holes at one end of the tube that are universal. I did have to drill my own holes more towards the center for my 2000 Santa-Fe. One other issue I had was the tube threads were a bit tight to fit with the male threads of the crank assembly. Was very careful not to cross thread when installing. Overall satisfied as the part replacement solved the problem.
Store owner replied:
Hello Brian! You can find the written instructions under the link INSTRUCTIONS at our webstore, or videos at Pop up camper pro on YouTube. https://www.youtube.com/channel/UCivrvLflYBGwk7KchItn1CQ
Using Coleman pop-up parts was a great experience. Dericks videos are great and when I had a question or two he called me directly and was ready to help. Thanks for being awesome, customer service is a lost art, keep it up.
Bought this and had it delivered to Canada. It wouldn't have been so bad to pay the ridiculous price for a 6" metal tube with some washer and bolts if it was properly fitted. The pin that is supposed to go in the metal tube will not go it, no matter how much pounding/pushing/hammering we do. We will have to re drill the hole in the tube for the pin. NOT HAPPY at all.
Store owner replied:
So sorry that the drive hub pin hole was not drilled correctly Phyllis. We completely understand how frustrating circumstances such as this can be.
