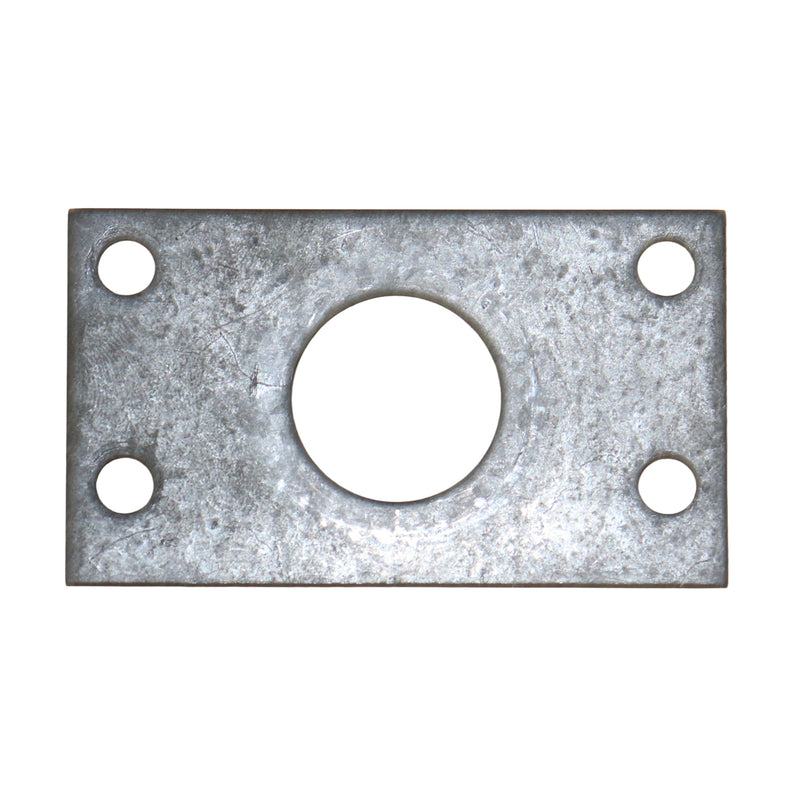

Metal bearing spacer plate for direct drive crank systems on a white background

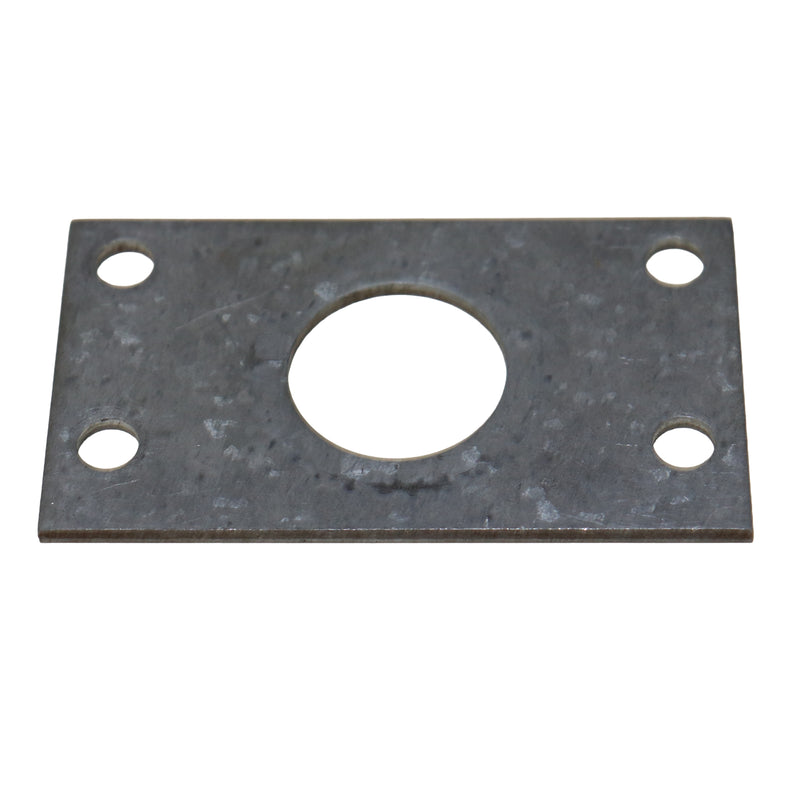

Metal bearing spacer plate for direct drive crank systems on a white background showing the thickness

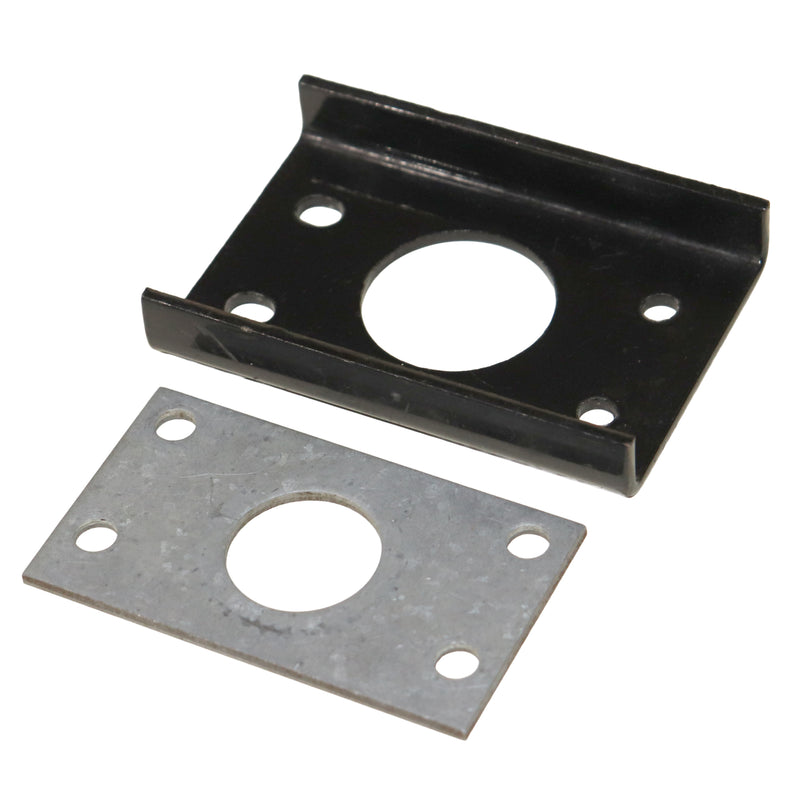

Metal bearing spacer plate for direct drive crank systems and the bearing reinforcement plate

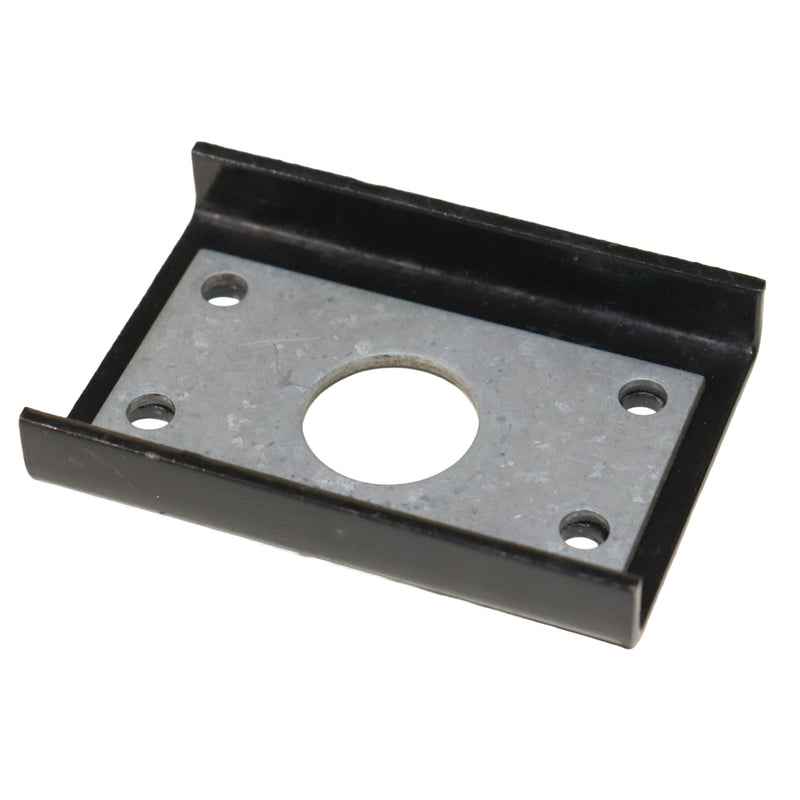

Metal bearing spacer plate for direct drive crank systems and the bearing reinforcement plate shown together
Metal bearing spacer plate for direct drive crank systems on a white background
Metal bearing spacer plate for direct drive crank systems on a white background showing the thickness
Metal bearing spacer plate for direct drive crank systems and the bearing reinforcement plate
Metal bearing spacer plate for direct drive crank systems and the bearing reinforcement plate shown together

Bearing Spacer Plate

por Coleman Pop Up Parts
$14.45 - $14.45
$14.45
$14.45 - $14.45
$14.45

Found on direct drive crank assemblies. This plate sits inside the larger bearing plate, and stops the crank system from moving to far forward.

A common symptom where this plate is required, is if the ratchet pawl is moving off the ratchet gear when raising.

Product notes

  • Images 1 and 2 show the actual product.
  • Images 3 and 4 show the application on the part. The black bearing reinforcement plate is not included with this sale.

Measures 3-5/8 inches wide by 2 inches tall 1-3/16th inch inside diameter hole.

Part number 4756-8321
