Universal Bed Rails For Units Built Before 1997
These bed rails works with almost every Coleman and Fleetwood pop up built prior to June 1997. Ready to install and set for most king sized beds and easily adapts to become a queen or a double.
Pop Up Camper Pro Tip

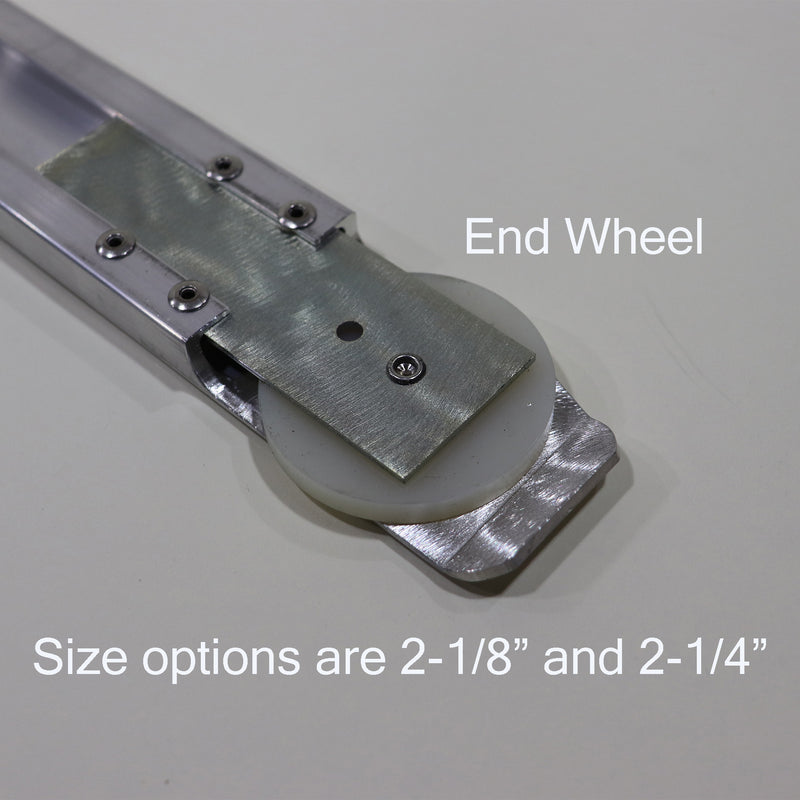

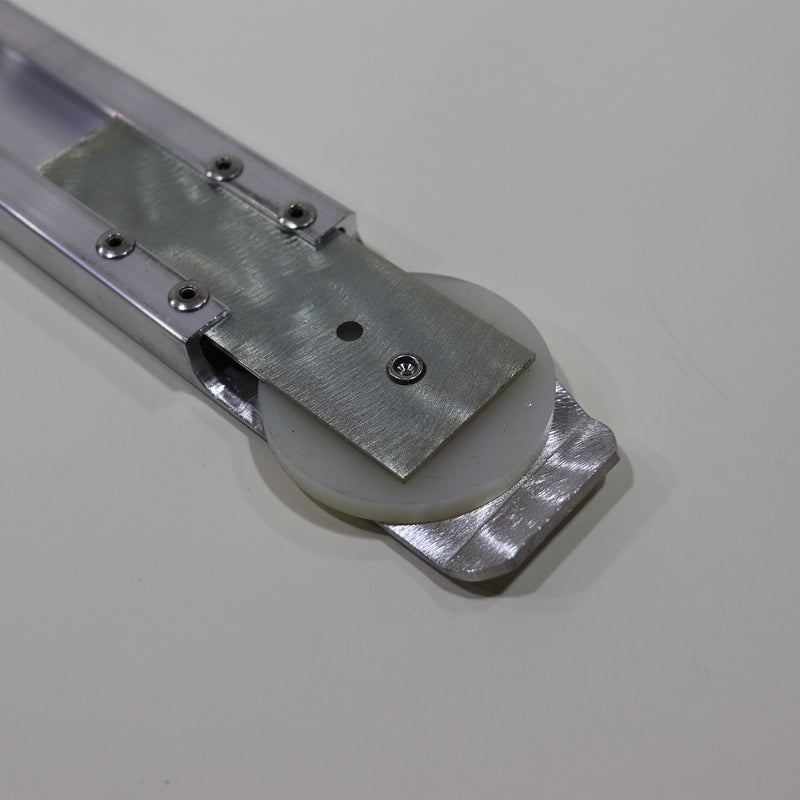

To choose which wheel size you need, you can measure the wheel on you existing bed rail, or the track opening that the wheel rides in. One of you rails will slide through the door opening. You will find that this wheel commonly has a flat spot in it and is riveted so it cannot roll. The flat spot always faces down.
You can use the 2-1/4 inch wheel kit to make a 2-1/8 inch, or flat spot version.
Easy to install
Remove the roll pins and plastic tracks. This allows the bed to pull completely out. Now install your kit in the same positions as your original rail. Every last piece of hardware is included for an easy installation. A how to video is linked above.

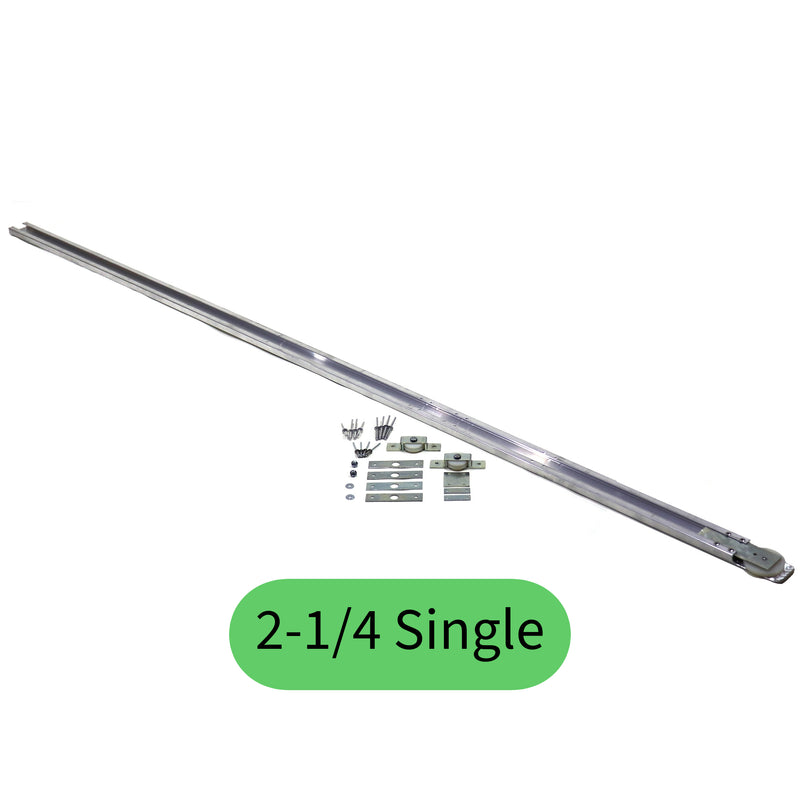

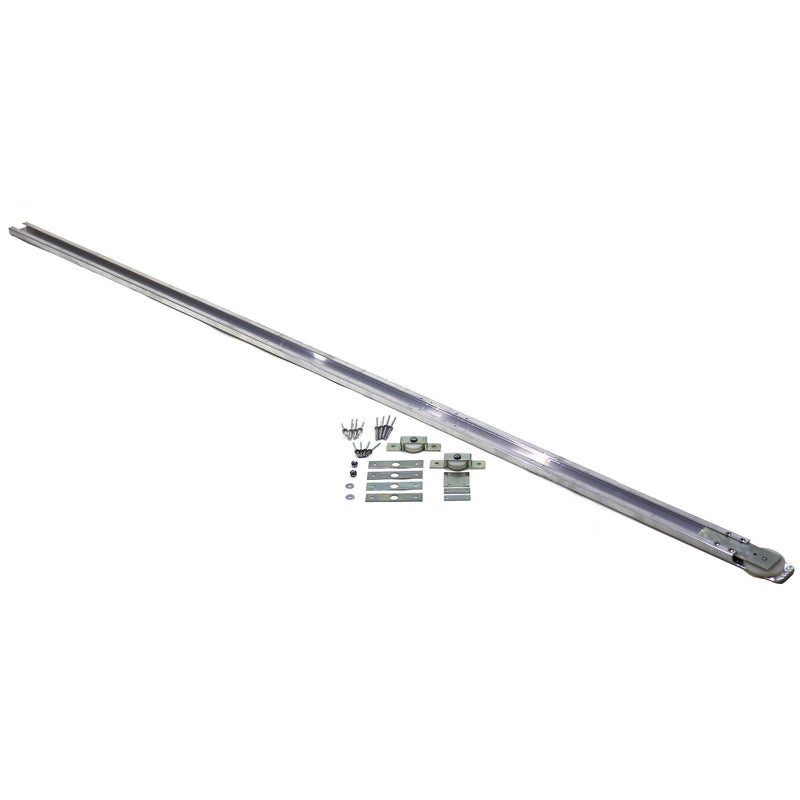

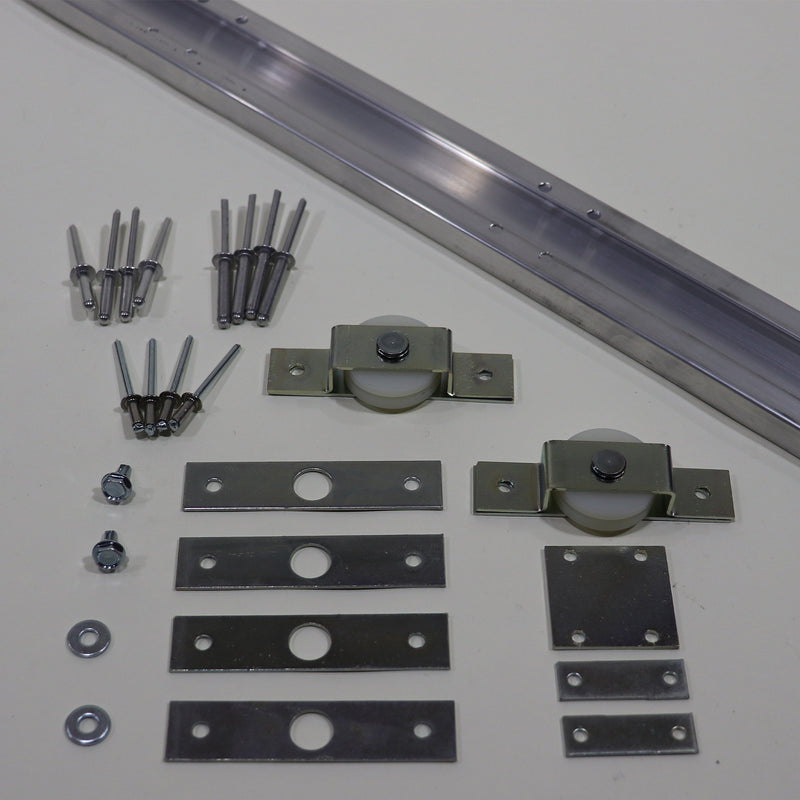

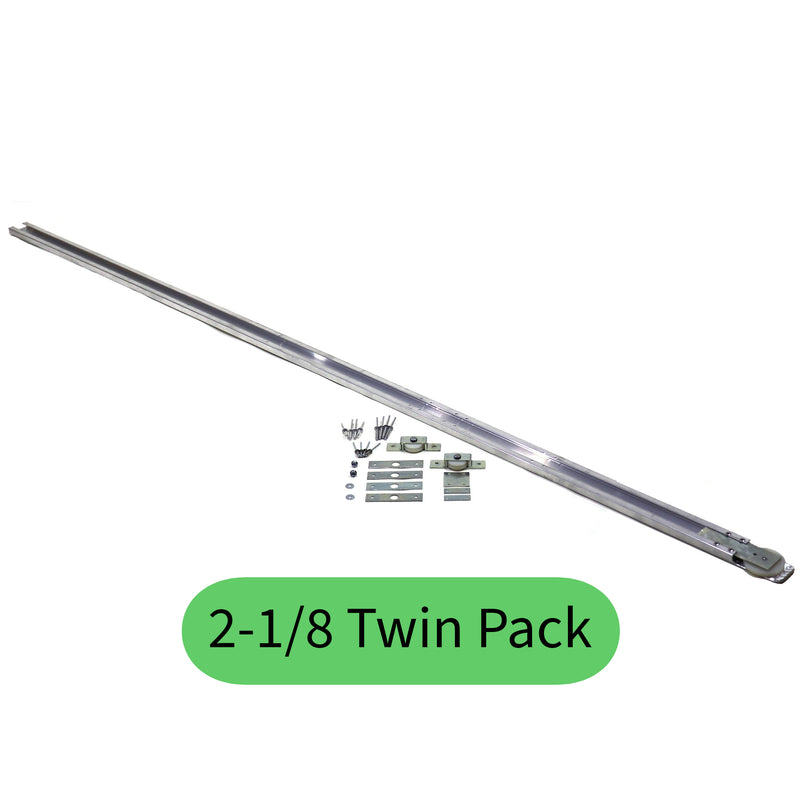

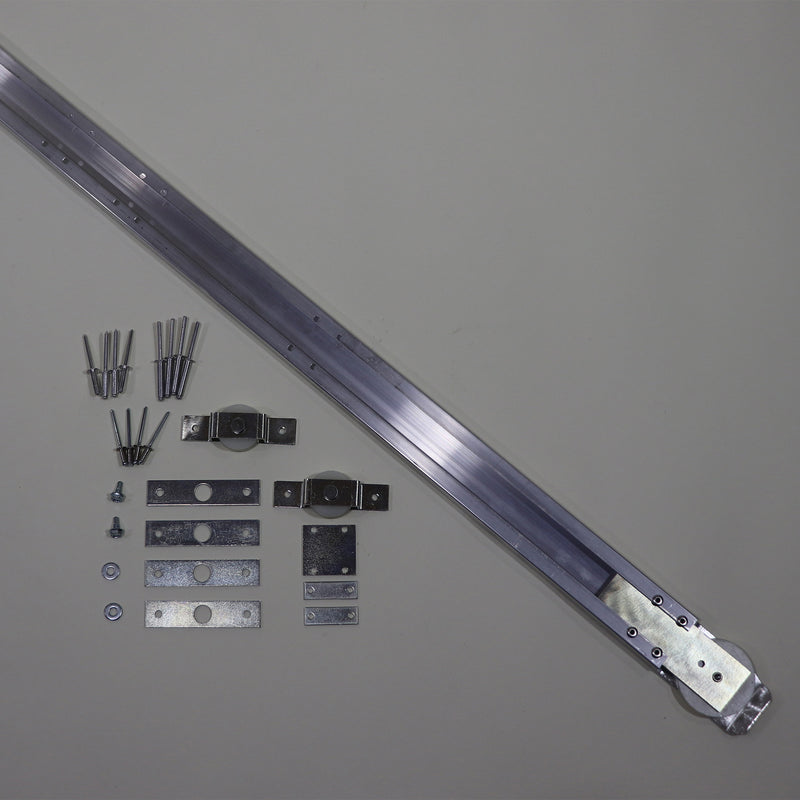

Includes:
- 1 Bed rail
- All required rivets
- All required stop plates
- All required spacer plates
- 2 Roller assemblies
- 2 Screws and washers
One bed rail services one bed extension side.
Two rails are required to service one complete bed extension.
Measuring for your new bed rail.
This universal rail is pre piloted for almost every stop plate location for each unit built prior to 1997. In the product images, and at the INSTRUCTIONS link located at the top of the webstore you can find the dimension chart and modification chart to assist you in installation.
Dimension Chart
Using the dimension chart, this rail has the following length and stop locations.
- A = 71-3/8"
- B = 12-7/8"
- C = 22-7/8"
- D = 37-1/2"
- G = 19-7/8"
- F = 3/8"
Please select your style of bed rail from the drop down menu above by choosing your wheel size and quantity's.
