Square Drive Lift Motor

Prix d'origine $369.95 - Prix d'origine $369.95
Prix d'origine
$369.95
$369.95 - $369.95
Prix actuel $369.95

Square drive design.

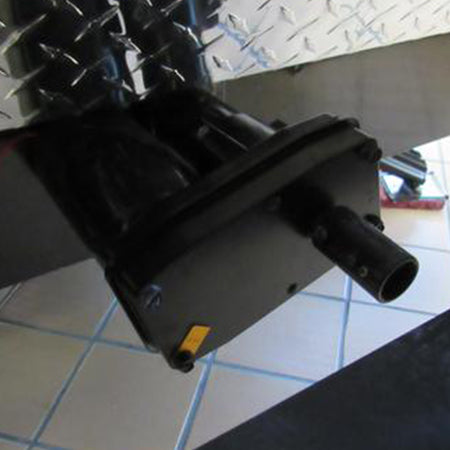

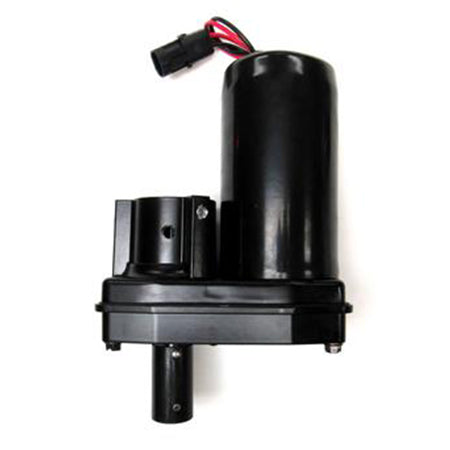

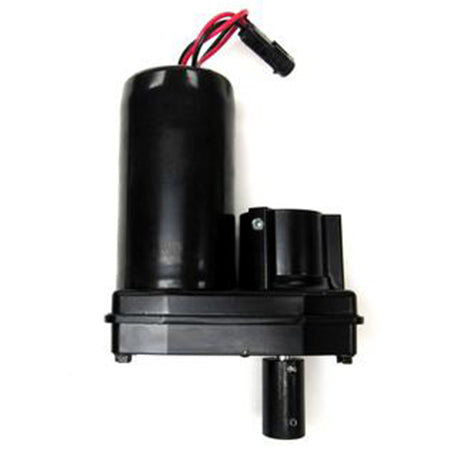

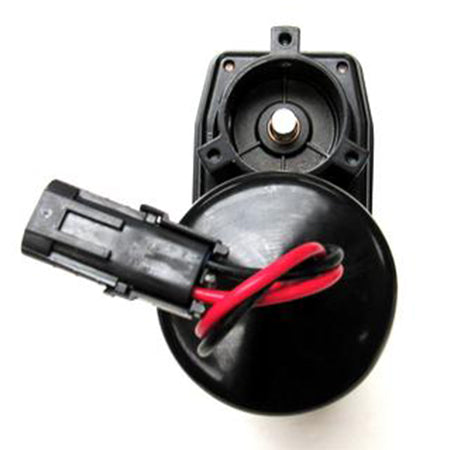

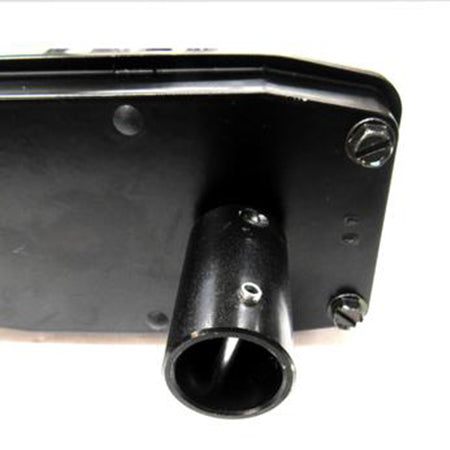

Only two lift motors were used and they are easily identified by the shape of the drive coupling. This motor incorporates a "square" shaft design. All other components of the motor and harness plug are identical in both motors. This motor output shaft design was introduced around 2007.

Note: Never use the power lift function while plugged into any shore power. This system is designed to run off the 12 volt battery only. Operating the power lift while plugged into either 15 amp or 30 amp service could damage your equipment.

Installation instructions for the power lift options can be found at the following links

If your looking for the manual crank override adapter found on the back of the lift motor, it can be found here

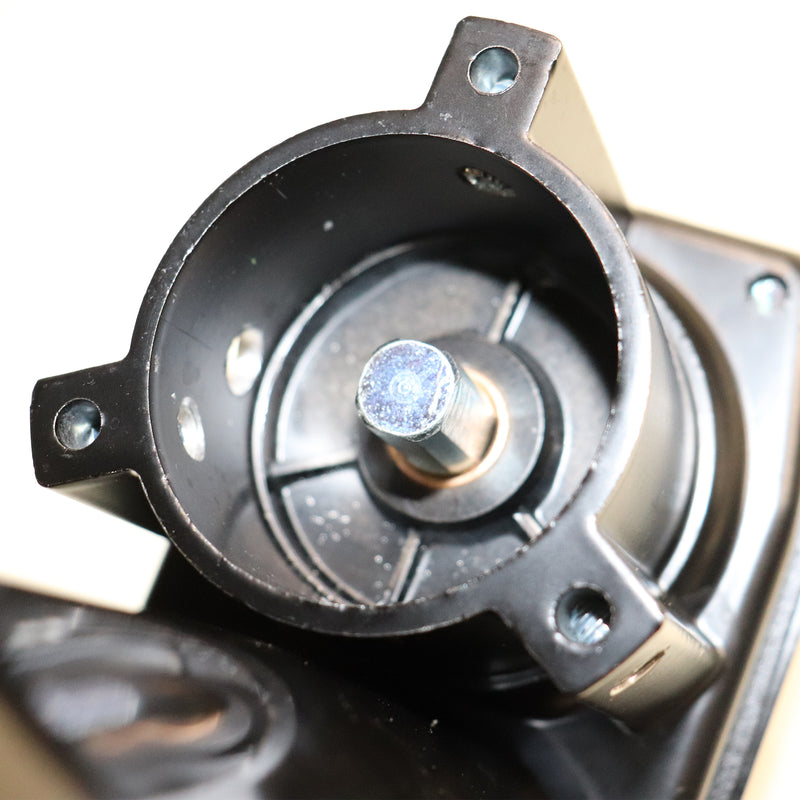

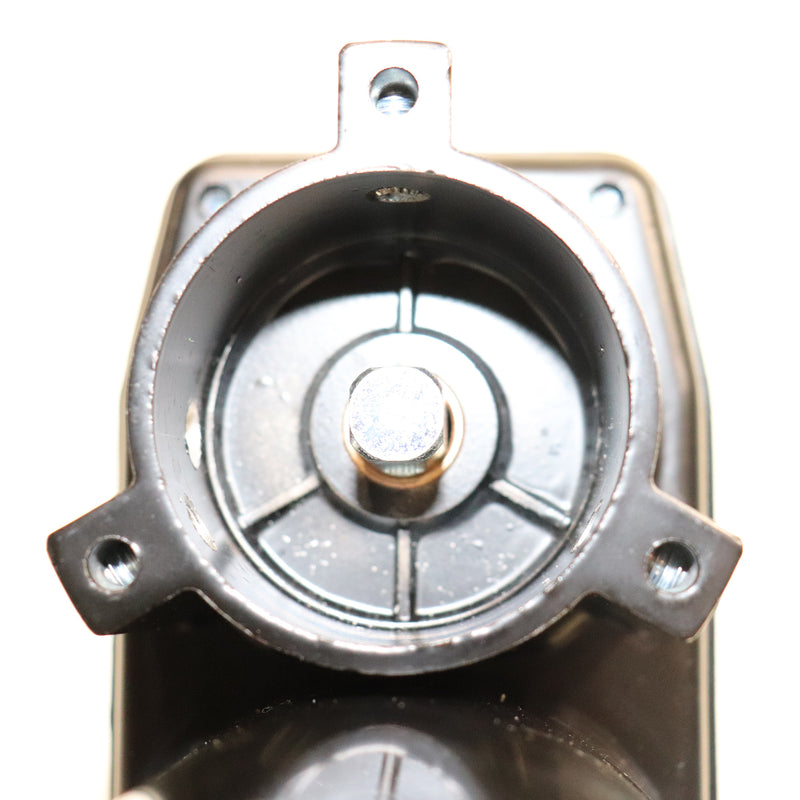

This new motor comes with this manual crank override adapter installed.

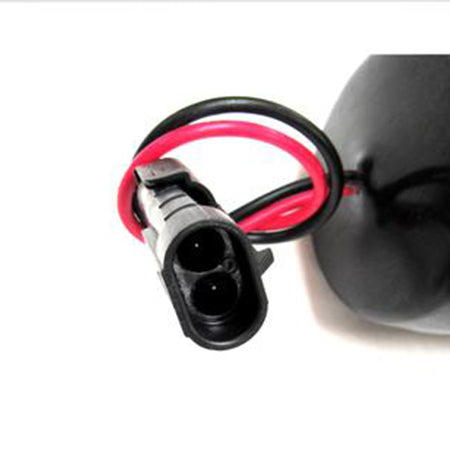

If your camper has a white plug at the lift motor electric connection, add a adapter here

The square drive coupler that mounts this motor to the whiffle tree can be found here

Videos available

Part number 4767C646
