Silver Lift Trim
Sign up for restock notifications
Installed at the lift pillars, this trim kit keeps weather and debris out of the lift arms and act as guides for the lift arms. Finding these trims broken can be a result of an issue with the lift arm or its mounting.
Be sure to check the 4 mounting bolts that secure the arm to the bottom of the camper. These should be snug.
There are two 7/16th lock nuts inside the roof lift pocket. These should be loose on the studs, only run about half way up the stud.
If these nuts are tight to the roof, back them off halfway down.
This trim has a curved lip at the front.

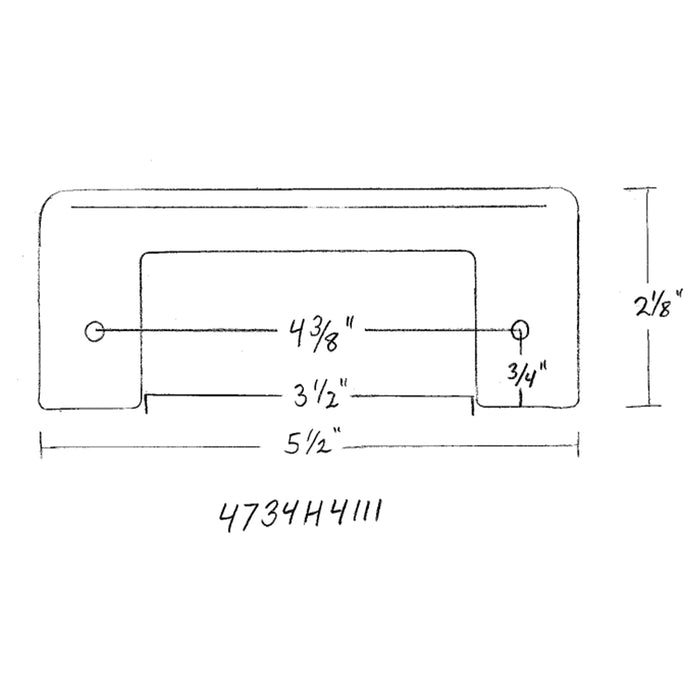

Measures 5-1/2 inches wide by 2-1/4 inches tall. Inside cutout measures 3-1/2 inches wide by 1-1/2 inches deep.
The mounting holes are spaced at 4-3/8 inches on center.
One trim services one lift post.
Popular Installation Hardware.
Mounting Gaskets
https://colemanpopupparts.com/products/lift-trim-gasket
https://colemanpopupparts.com/products/rivet-31
https://colemanpopupparts.com/products/rivet-11
https://colemanpopupparts.com/products/rivet-25
https://colemanpopupparts.com/products/corner-cap-installation-kit
Part number 4734H4111
