Sun Shade Mounting Bracket Used

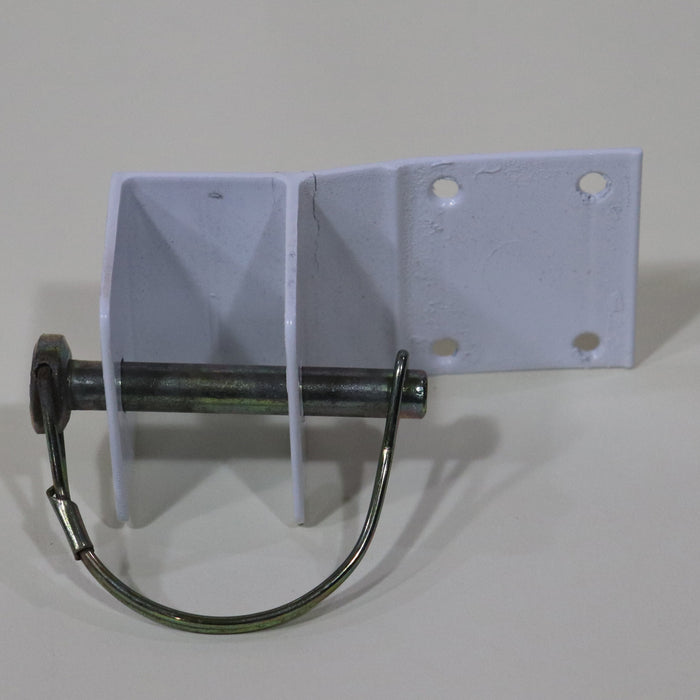

Pole bracket for the sun shade awning systems. This system is designed for roof’s that have two awning rails, one on each side. Over the glide out or tip outs, a shorter 3 foot projection awning was available. This bracket is designed for these systems

This bracket mounts next to the roof latches, that hold the vertical awning poles. A pin then clips and locks the vertical ridge poles to the side of the pop up.

Measures 4 inches wide by 2 inches by 2 inches.

Installation instructions can be found here

Part number 4758-9301-USED
