Crank Assemblies

Used in lift systems to pin gears and couplers together. Measures 1 inch in length. Part number 4744-1351

The primary application is to pin the chain drive gear to the drive shaft in upper, and LH crank assemblies. Measures 1-1/2 inches long. Part numbe...

Roll pin used in multiple applications. Applications include, Drive couplers Gears The chain sprocket to the upper and LH crank assemblies. This a...

Measures 1-1/8 inches in length. Part number 4701-3261

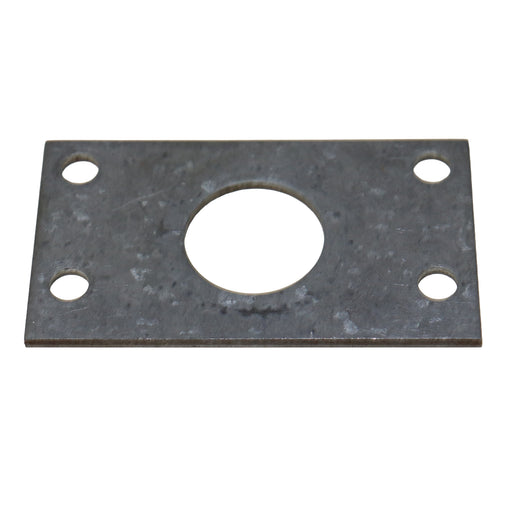

Used to reinforce or space the thrust bearing. Measures 4 inches wide and 2-3/4 inches tall. 1-1/2 inch diameter hole. Color : White Part number 47...

Used to reinforce or space the thrust bearing. Measures 4 inches wide and 2-3/4 inches tall. 1-1/2 inch diameter hole. Color : Black Part number 47...

Used on many chain driven crank assemblies. This gear drives the 12 tooth gear, and is found in many upper cranks and left hand cranks. Some versio...

Used on Coleman and Fleetwood pop up with an upper or left hand crank assemblies. The chain runs from the crank assembly to this gear. This gear th...

The lift arm provides lift to the pop up. They are found in each corner of the camper. CSF / Curb Side Front RSR / Road Side Rear Videos availab...

The lift arm provides corner lift to the pop up. It works in two separate locations on the unit. CSR / Curb Side Rear RSF / Road Side Front Vide...

The lift arm provides lift to the pop up. They are found in each corner of the camper. CSR / Curb Side Rear RSF / Road Side Front Videos availab...

Commonly found in lift arms. This bolt holds the main and stage cables in later model lift arms. Phillips head drive. Measures 1/4 of an inch long....

Found on 3 stage lift arms, this is the second section from the top. The arm location is RSF / CSR (Road Side Front - Curb Side Rear) The top brack...

Found on 3 stage lift arms, this is the second section from the top. The arm location is RSR / CSF (Road Side Rear - Curb Side Front) The top brack...

Found on 4 stage lift arms, this is the second section from the top. The top bracket is where the pulley attaches. The bottom bracket for the stage...

Found on 3 stage highwall lift arms, this is the bottom section. Highwall units typically have body panels that measure 28 inches in height. The to...

Direct drive crank mounting plate. Comes complete with an installed shaft bushing. Measures 7-3/4 inches wide, 3 inches tall and 2-1/2 inches in de...
