4 Stage Lift Arm CSR-RSF Used

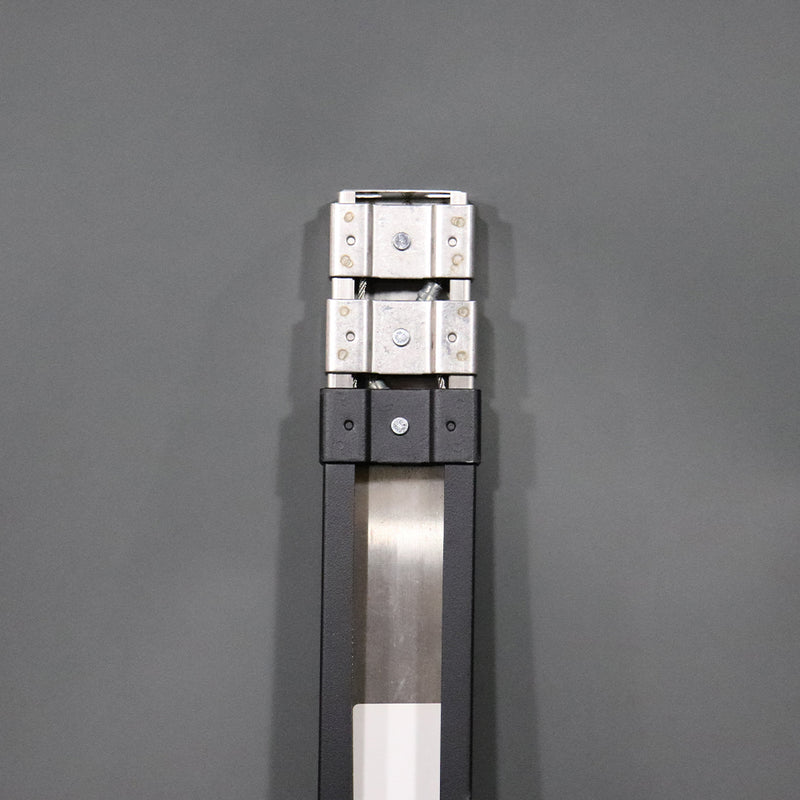

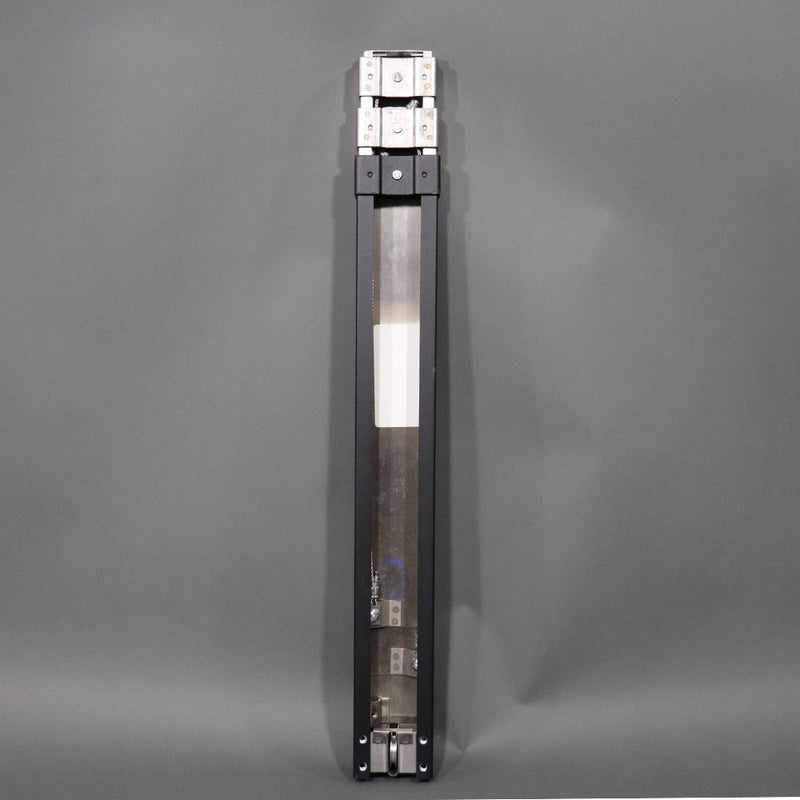

4 Stage lift pillar.

The lift arm provides corner lift to the pop up. It works in two separate locations on the unit.

  • CSR / Curb Side Rear
  • RSF / Road Side Front

If you were to draw on X on top of the pop up roof, each end of each line would point to the same lift arm. You could also call this lift arm passenger side rear and driver side front.

Originally lift arms were available with a pre-cut main lift cable designed for individual units. To simplify this product, we have created a link to add a universal main lift cable to your lift arm.

Lift arms can be easily matched by the number of stages and the length of the lift arm main body.

To match your lift arm and cable, simply follow these steps.

  • Count the number of stages.
  • Measure the main body. This one measures 27-3/8

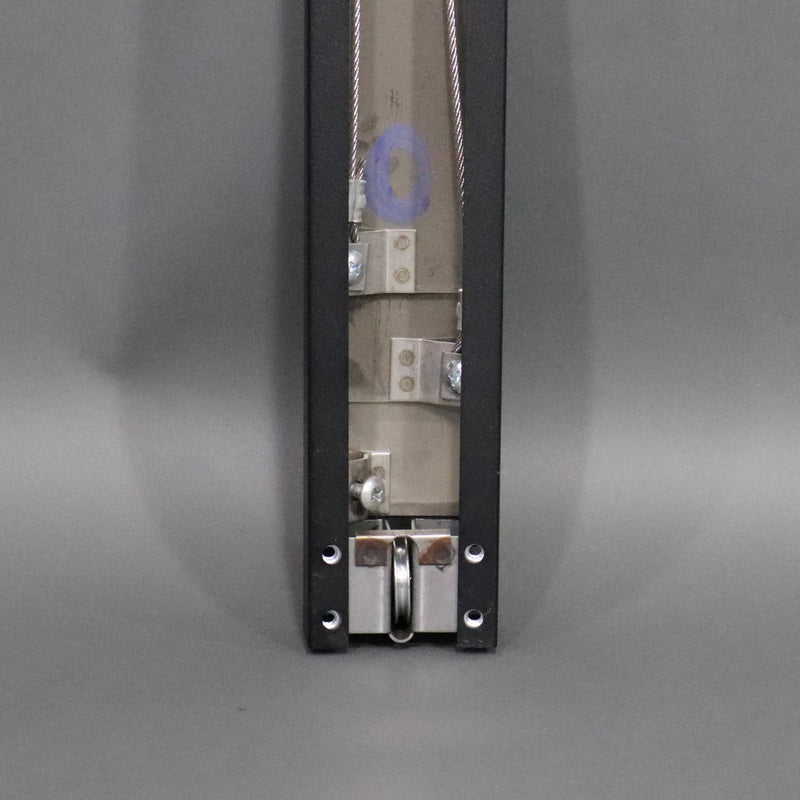

  • Check the lowest 45 degree bracket for the main cable. This bottom bracket always points away from the center of the camper when installed. Find the image showing the bottom of the arm.
  • Check the main lift cable at the whiffle tree. Does it have a bolt end or a loop end?

Add a universal bolt end cable kit here

Add a universal loop end cable kit here

Part number SK170104-USED

Lift arm main body may be silver or painted black

Sub part numbers 4739B6901 4733E5801 4747-6761 4747-6751 4739B6801 4733E5801 4745C5461 4745C5471 4716-0011 4716-0021 4716A0011 4716A0021 4751B6371 4751B6381 4716-0031 4716-0041 4716-0051 4716-0051 4767-6511 4716-0071 4716-0081 4767A6511 4772-5091 4772-5101 4716A0031 4716A0041 4772A5091 4772A5101
