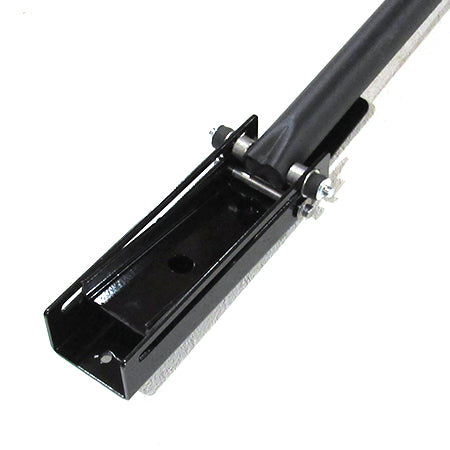

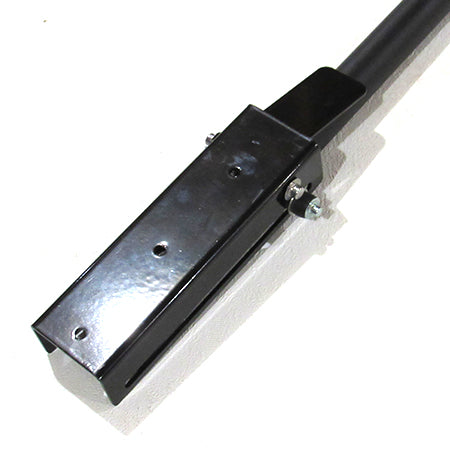

Bed Support Pole Slide Style


This bed support pole is commonly found on the following Coleman and Fleetwood series pop ups.

  • Destiny
  • Grand Tour
  • Highlander
  • Evolution
  • Scorpion

This is the pole that stabilizes the bed. Two are found under each bed frame in these series. When the bed is pulled out, the pole swings down to the pole support bracket.

Video Available

How to repair bed leg channels

Remember to make sure the bed support poles are down and locked into position before anyone climbs on the beds.

The slide bracket measures 6-1/2 inches in length.

Easily modified to create any shorter pole or location that you need.

To create a shorter pole

  • Cut the bottom end of the pole. Tack weld a small piece of steel back to the inside lip to create the catch again.

To change the location

  • Remove one PAL nut from the slider pin. Remove the pin hardware, and flip the pole over. reinstall the hardware.
  • PAL nuts typically do not like to reinstall tightly once removed. If you may need to change the location, consider adding a PAL nut to your order.

To add a push nut to your order,

Click here

Looking to add the clips that store these poles under the bed?

Click here
