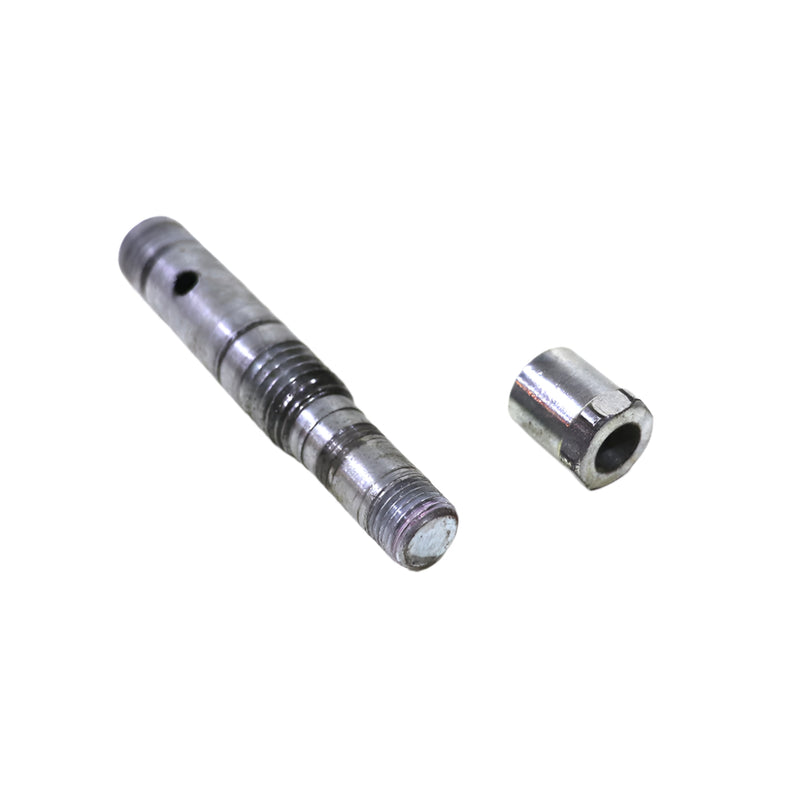

Fine Thread Drive Shaft

$44.95

Sign up for restock notifications!

Notify Me

Used in upper crank assemblies, and the lower left hand chain drive system found on certain 12 foot box units.

The crank assembly gears and mechanism ride on this drive shaft. The drive hub extension tube threads onto the second set of threads of this shaft.

Video available

Dimensions are 3 3/4" long and 5/8" diameter at it's widest point. The rear pin hole for the toothed sprocket sits at 7/8 of an inch as measured from the rear to the center of the hole.

Here are examples of drive shafts with damaged threads.

The threads at the end of the drive shaft are fine thread for the 5/8 nut.

Fine Thread nuts for this drive shaft are available

Part number 4751A3521
