7 X 1-1/4" Bearing Kit
Complete set of wheel bearings. One kit services one wheel.

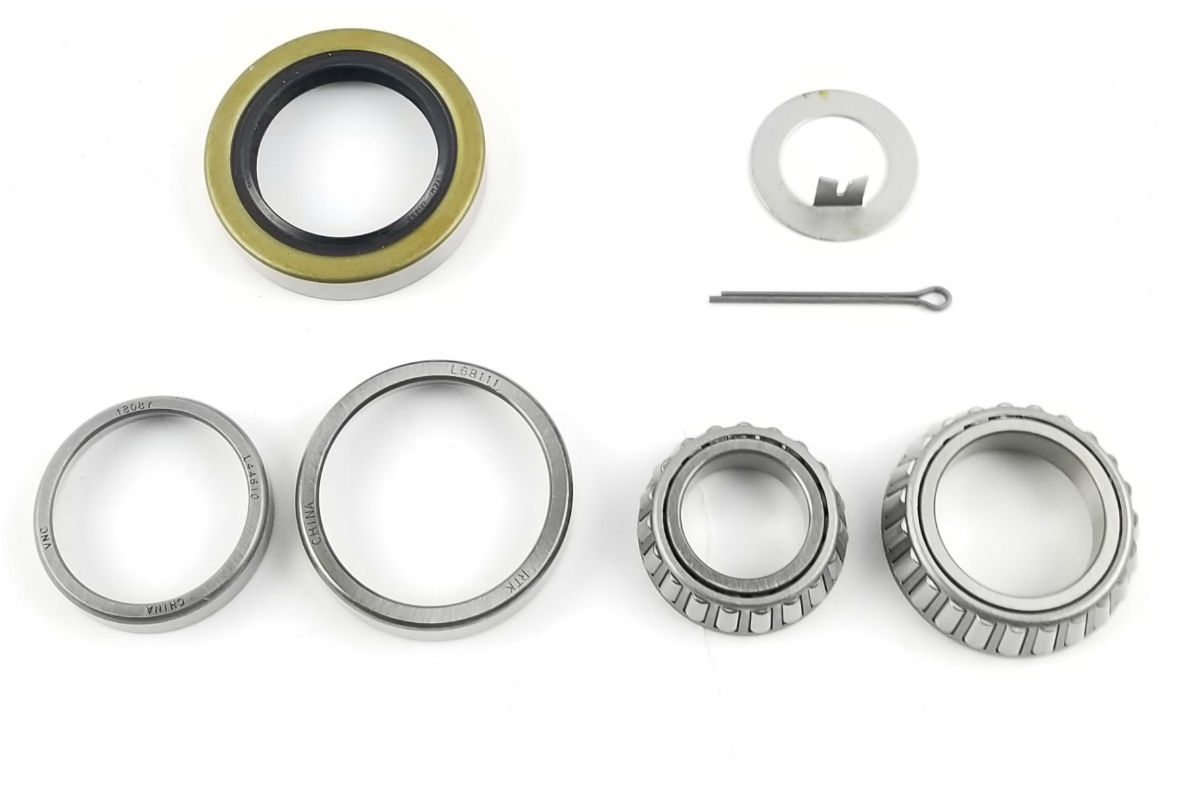

Kit comes complete with inner outer bearings and races, dust cap, seal and cotter pin.
There are a few easy ways to determine your correct bearing kit.
You can measure across the drum, and the width of the brake shoes. Example: A 7 inch brake assembly has a 7 inch drum, and 1-1/4 inch wide brake shoes.
You can check your parts book for the installed axle. Directly matched axles for this bearing and seal kit are listed below.
Coleman and Fleetwood pop up's without electric brakes always use this bearing and seal kit.
You can also call us to help confirm your parts as well.
One more note about this kit. It comes with the most common wheel seal, as pictured in the product images. It measures 3/8 of an inch tall. On units with idler hubs, a thinner seal is sometimes required. Consider adding this additional seal kit to your order.
Add wheel seal 4714B2201 to your order
Part number 4716-1101
Fits the following axles...
- 4741G6301
- 4760-0011
- 4749-6071
- 4756A1101
- 4741E6301
- 4741G5761
- 4702-0781
- 4730M3011
- 4730L3011
- 4755-4441
- 4755A4441
- 4755C4441
- 4755D4441
- 4701-2881
- 4701B2881
- 4701G2881
